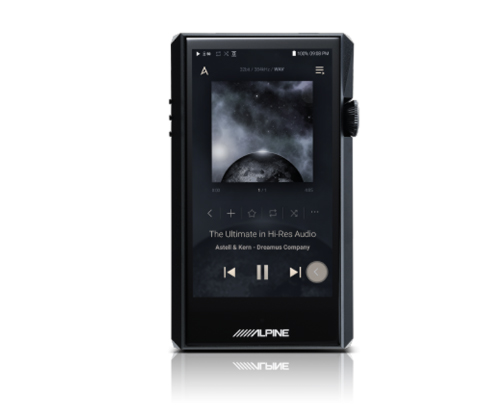

Digital Audio player
개별판매 불가 상품
| 항목 | 상세 내용 |
|---|---|
| Storage capacity | 128 GB (NAND flash) * including system area |
| *Expansion slot ¹ | microSD card slot × 1 (SDHC/XC, Max. 400 GB, supporting exFAT) |
| *No. of storable tracks in player ² | Approx. 780 tracks (FLAC/192 kHz/24 bit) Approx. 4,940 tracks (FLAC/44.1 kHz/16 bit) |
| *Continuous playback ³ | Approx. 10 hours (FLAC/44.1 kHz/16 bit) |
| File formats | WAV, FLAC, MP3, WMA, OGG, APE, AAC, ALAC, AIFF, DEF, DSF |
| Sampling rate | 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 768 kHz (* native playback is available for up to 384 kHz; 768 kHz source is converted down to 384 kHz) DSD: DSD64 (2.8 MHz) stereo, DSD128 (5.6 MHz) stereo, DSD256 (11.2 MHz) stereo (* native) |
| Quantization bit rate | 8 bits, 16 bits, 24 bits, 32 bits (Float/integer) * native |
| Bit rate | FLAC: 0 to 8, Ape: Fast to High, MP3/WMA: Max. 320 Kbps, OGG: Up to Q10, AAC: Max. 320 Kbps |
| Folder management | ○ |
| Tag information | ID3 V1 Tag, ID3 V2 2.0, ID3 V2 3.0 |
| Database management | Track, album, artist, genre-based, playlist, folder, MQS |
| Resume function | ○ * Playback after cueing |
| Album artwork | ○ |
| Lyrics display | ○ |
| Playlist function | ○ |
| Playback method | Normal playback, shuffle |
| Repeat mode | Repeat, 1-track repeat |
| Equalizer function | PRO EQ (fixed), user EQ (20 band: 30 Hz to 18 kHz / gain: ±5.0 / Q value: 0.1 to 0.4) |
| Gapless playback | ○ |
| 항목 | 상세 내용 |
|---|---|
| Physical keys | Rewind, Playback/Pause, Fast-forward, dial volume (power and screen ON/OFF), touch sensor |
| Locking function | Dial volume lock (can be set via notification bar to be pulled down from upper part of screen) |
| Volume adjustment | 151 steps |
| Standard | IEEE 802.11 b/g/n (2.4 GHz) |
| Version | 4.1 |
| *Profile ⁵ | A2DP, AVRCP |
| Supported codec | SBC, aptX™ HD |
| OS Compatibility | Windows® 10/8/7 (32 bit/64 bit), XP, Mac OS X 10.7 or higher |
| Processor | Octa Core |
| D/A converter | AK4497EQ from AKM (Asahi Kasei Microdevices) × 2 (Dual DAC) |
| Input terminal | USB Type-C (charging, data transfer, USB-DAC) |
| Output terminal | Earphone (unbalanced), balanced output (2.5 mm/4 polarities) |
| USB AUDIO output | PCM: 8kHz ~ 384kHz / DSD (DoP): ~ 5.6MHz |
| *USB-DAC function ⁴ | 44.1kHz ~ 384kHz (16/24/32bit), DSD 2.8MHz · 5.6MHz · 11.2MHz |
| Output level | Unbalance 2.1Vrms / Balance 4.2Vrms (Condition No Load) |
| Output impedance | Balanced Out 2.5mm (1ohm) / Phones 3.5mm (2ohm) |
| Frequency characteristic | ±0.062dB (20Hz~20kHz) Unbalance / ±0.061dB (20Hz~20kHz) Balance ±0.68dB (10Hz~70kHz) Unbalance / ±0.67dB (10Hz~70kHz) Balance |
| Signal-noise ratio | 120dB @ 1kHz, Unbalance / 123dB @ 1kHz, Balance |
| Stereo cross-talk | 138dB @ 1kHz, Unbalance / 144dB @ 1kHz, Balance |
| THD+N | 0.0007% @ 1kHz, Unbalance / 0.0006% @ 1kHz, Balance |
| IMD | 0.0004% 800Hz 10KHz(4:1) Unbalance, Balance |
| Clock jitter | 25ps (typ) |
| Reference clock jitter | 200fs (VCXO Clock) |
| 항목 | 상세 내용 |
|---|---|
| Battery | Built-in lithium polymer battery (3,300 mAh/3.7 V) |
| Auto-off function | Auto power off, backlight off, sleep timer |
| *Charging method ⁷ | Charging only (power off), charging and playback and data transfer |
| Shape | USB Type-C (charging, data transfer) |
| Connection method | MTP (media device) method |
| Display | 4.1-in TFT color LCD (electrical capacitance touch screen) |
| Resolution | HD (720 × 1280 dots) |

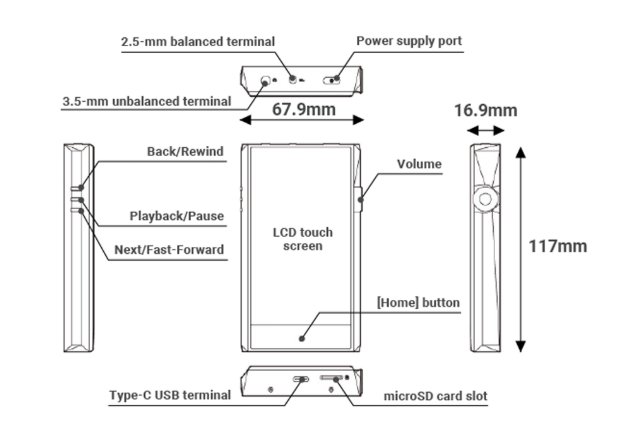

| Dimensions | Approx. 67.9 mm [W] × approx. 117 mm [H] × approx. 16.9 mm [D] |
| Weight | Approx. 203 g |
